RO Consumables   Ro Consumables For Commercial and Industrial Applications   Looking to replace your old outdated inefficient water filtration system? ROConsumables.com offers a large selection of cost effective RO solutions for your business and industrial reverse osmosis water filter applications. Please review the tv Reverse Osmosis Water System Series below.

Reverse Osmosis Water Treatment Made In The USA (Division of RainDance Water Systems)

See and compare our unmatched selection of industrial reverse osmosis systems below:



INDUSTRIAL REVERSE OSMOSIS WATER FILTRATION



Industrial High Capacity TP Series Industrial Reverse Osmosis 24,000 to 300,000 GPD (16-208gpm) Pricing Guide



RainDance Water Systems specializes in creating specific RO systems to meet unique customer needs. The Horizontal product line allows for large volumes and specialized water treatment. These custom engineered systems can handle a broad range of industrial, commercial and agricultural applications.



Output: 24,000-1,000,000 gal/day Ideal for: Surface, Well, City, and Brackish Water

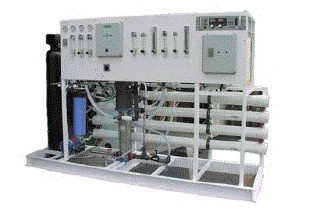

Integrated Treatment Systems - Industrial Reverse Osmosis Water Filtration Systems

In many past projects, we have had the responsibility of integrating multiple water treatment and process functions with RO membrane purification on an integrated skid system. Such integrated processes have included bulk media prefiltration, ozonation, UV, antiscalant injection, post pH correction injection as well as specific customer components. These specialized integrated systems come on a unitized skid frame with central water and power connections.

These systems have been produced for applications such as humidification control, environmental fog and misting, hothouse/agriculture, food processing, bio-manufacturing, power plant process water, potable water production and others. When a complete system approach is needed to provide the solution to a water treatment requirement, we can deliver the solution.



High purity water treatment systems have included both Reverse Osmosis/Deionizing Resin (RO/DI) as well as Reverse Osmosis/Electrodeionization (RO/EDI) systems. These systems produce output water up to 18 megohms and have been employed in chemical processes, medical device cleaning and semiconductor manufacturing. Engineers are well acquainted with the special considerations required in the design and implementation of such systems as to materials, instrumentation, safeguards and controls necessary to provide a reliable and dependable system product.

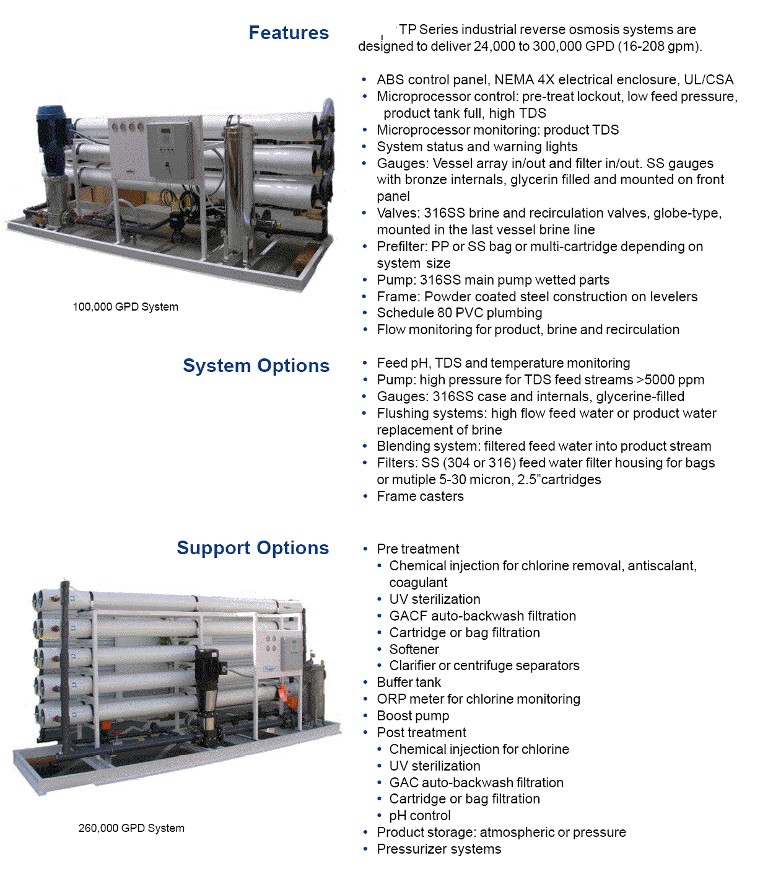

TP Series High Capacity Industrial Reverse Osmosis

Available in 24,000, 30,000, 40,000, 50,000, 60,000, 70,000, 80,000, 90,000, 100,000 UP TO 1,000,000GPD Capacities.



<Click Here TP Industrial Series Request Information & Price Quote>



---

RainDance Water Systems Custom TV-RO Skid Series Commercial Reverse Osmosis

Our RDWS-TV-RO Skid Mount Series reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.

We offer commercial skid water filter solutions for distilleries, breweries, wineries, vineyards, micro-breweries, purified ice and beverage companies.



We offer sodium salts, total dissolved solids, and silica water filtration through commercial reverse osmosis, nano filtration and ultrafiltration systems for agriculture including palm trees, tomatoes, avocados, almonds, nut farms, berries, citrus fruits, grapes, green houses, orchards, and irrigation filtration system for farms.



We offer bacteria, nitrate, sulfate, salt water filtration systems for livestock including horse farms, cattle, pig, chicken, turkey, sheep, duck, poultry farms, dairy farms, dog kennels, exotic animal farms.



We offer complete reverse osmosis water purification skid mount solutions for manufacturing including bottled water stores, pharmaceutical, electronic industry, process water, chemical industry, electroplating industry, electrical power generating, polymer solutions and more.



A small sample of our water treatment customer base includes: The U.S. Army, The U.S. Environmental Protection Agency (EPA), The U.S. Fish and Wildlife Federation, The United States Coast Guard, Washington St. National Park Service, San Diego State University, Arizona State University, Palomar College, Miasole, Trico Products Corporation, Affinity Flavors, Old Country Vineyards, Snake River Power Plant, Berkley Surgical Corporation, Abengoa Energy of NE, Golden Eagle Thoroughbred Horse Farm, Buckridge Plantation and Stables, Advanced Marine PTE., Quinlan Texas Elementary School, Fairbanks Farms, Hunter Industries, Sonance Corp., Owens Brigam Medical, 1st Choice GMAC Realty, Century 21 Realty, Coldwell Banker Realty, Austin Productions, Fairfield Country Club, and Auer Precision Inc. Just to name a few.





RDWS-TV-RO-SKID Series 2,000 gpd to 12,000 gpd
The Complete Package - Skid Mount Commercial Reverse Osmosis Systems

RainDance Water Systems Fully Integrated  RDWS-TV-RO-SKID SERIES

Fully Customizable To Fit Your Water Requirements - Skid Mount Commercial Reverse Osmosis Water Filtration System

(appearances may vary, 300gal. storage tank included, but not shown)



Water treatment at its best! Multi-stage water treatment for your business.



RainDance Water Systems RDWS-TV-RO-Skid Series Commercial Reverse Osmosis Systems



RainDance Water Systems is proud and honored to have provided Custom Skid Mount Reverse Osmosis Systems to the US Army to supply our troops in Afghanistan quality drinking water.



WE INVITE COMPARISONS TO ANYTHING ON THE MARKET!

Complete multi-filtration process on one skid. Unlike, most multi-piece water treatment systems that are scattered throughout your business our RDWS-TV-RO-SKID Series mobile integrated skid mount unit contains complete pretreatment, reverse osmosis, re-pressurization pump, motor, microprocessor based controller, and UV disinfection all on a single skid base frame with wheels for easy positioning. To complete our RDWS-TV-RO-SKID Series reverse osmosis package these units also include a 300gal storage with float assembly as a standard feature. Most important our RDWS-TV-RO-SKID Series reverse osmosis systems are pretested before shipping, user friendly, components are shipped pre-plumbed on the skid and unit only requires a 220 volt 1 phase 60 Hz power source - custom & overseas power connections available.

Our skid mount RDWS-TV-RO-SKID Series reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, manufacturing, food & restuarant and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.

RDWS-TV-RO-SKID Series skid mount commercial reverse osmosis applications include: Agriculture, Livestock, Green Houses- Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water Stores, Pharmaceutical, Electronic Industry, Process Water, Chemical Industry, Electroplating Industry, Electrical Power Generating, Polymer Solutions and more.

RDWS-TV-RO-SKID Packaged Skid Mount Reverse Osmosis is pre-plumbed and pre-wired in most cases with one inlet connection, one drain connection, one water use connection, and one electrical connection to allow for fast hassle free installation. From the delivery of the equipment to your facility to the set up and use of water - In hours not days!

How It Works: User Friendly ! Everything within the skid is pre-plumbed and wired. There is a single point power inlet connection and the customer has to simply connect to the storage tank and then to his usage. Once our Integrated Skid Mount RO is installed and feed water is made available, the Storage Tank will begin to fill with product water. The product water will continue to fill the Storage Tank until the tank float switch closes and shuts the entire system off. At the same time, while the tank is filling, concentrate water will begin to flow into the drain system. The concentrate water will continue to flow to the drain system until the tank float switch closes and shuts the entire system off when the storage tank is full. When there is a demand for water, the skid mount Repressurization System is activated and draws product water from the Storage Tank. The product (RO) water is then delivered with the on skid re-pressure system to your usage point. If enough product water is used to the point where the float switch is reopened, the Skid Mount RO System is automatically reactivated and begins to replace the product water that has been depleted.

RainDance Water Systems Pre-Plumb & Wired Integrated TV-RO Skid Series Standard Features

Fully Customizable For Both City & Well Water Sources

• All components (excluding storage tank) located and contained on our skid mount platform with wheels - for easy positioning.
• Approx. Weight & Skid Dimensions: 51"W x 32"H x 63"H / Estimated Dry Weight 500lbs (2,000gpd -4,000gpd)
• Approx. Weight & Skid Dimensions: 58"W x 37"H x 63"H / Estimated Dry Weight 750lbs (6,000gpd -12,000gpd)
• Includes on skid Single point power connection for 220V, 60 Hz, 1-Phase power. <Custom and Overseas power connections available>
• Includes on skid (NO-Salt Discharge) Hard Water Treatment antiscalant feed system - Pretreats and protects the membrane from hard water scale, silica and highly mineralized water. Antiscalant hard water pretreatment method is preferable to salt based water softeners as it has more mineral pretreatment capabilities, no drain line waste water, lower maintenance, no salt pellets required, no salt discharge, economical, and is perfect for areas of the country that have chloride discharge limits. The antiscalant formulation has been certified by the National Sanitation Foundation (NSF) under ANSI/NSF Standard 60 for use in producing potable water.
• Includes on skid digital automatic *"No-Maintenance" well water iron, manganese, hydrogen sulfide gas, and suspended solids pretreatment system or substitute our *"No-Maintenance" chlorine removal system for city water sources. *No maintenance refers to automatic backwashing capabilities and no routine media replacement required - media can last 5-10 years.
• Includes on skid Pretreatment lock-out switch and manual bypass included for automatic backwashing systems.
• Includes on skid Automatic Flush on start up - Fast clean-flushes membrane each time the unit starts.
• Includes on skid microprocessor based controller - Controller includes digital product water conductivity indicator, Controller monitors feed water pressure, pump output pressure, product water conductivity, product water storage tank level and performs membrane flush on startup. Low feed pressure, high pump pressure and high product water conductivity result in alarm state indications. System control panel includes prefilter in and out pressure gauges, pressure vessel in and out pressure gauges, product water flow meter, recirc. flow meter with control valve and concentrate flow meter with control valve."Perfect for serviceman or do it yourselfer."
• Includes on skid "Low Energy" High Rejection Membranes in Stainless Steel Pressure Vessel(s)
• Includes additional testing monitor - Portable waterproof tester offers high accuracy pH, electrical conductivity (EC), total dissolved solids (TDS) and temperature measurements in a single tester. Allows you to test untreated and post treated water.
• Includes 1- 35" dia. x 81" ht. 300 gallon storage tank. For ease of handling and ability to get through doors we use a multiple array of tanks. Product water storage tank is green, with 16" manway, 2" bottom inlet/outlet (bushed to 1.25"). Two ea. Pump Up float switches installed in tank.
• Includes on skid 10gpm @ 48psi fully automatic electric pump (constant pressure) re-pressure system - Draws water out of the storage tank. Pump has integral switch for 40/60 psi output control and integral low feed water protection shutdown.
• Includes on skid chemical free ultraviolet UV disinfection system. UV Sterilizer for disinfection of feed water to inhibit bio fouling of R.O. membranes.
• Each skid mount reverse osmosis is fully assembled and tested before it leaves the plant.
• For optimum Skid RO Series performance customers must have at least 7gpm @ 30psi available. Note: Our Skid RO Series contains complete pretreatment for chlorine and hard water (calcium) typically associated with municipal water sources. If Skid RO is to be used on well water we offer the following guidelines: Operating Parameters: Max TDS-5000ppm, Total iron is less than 10ppm, Manganese is less than 3ppm, H2S less than 10ppm, Water hardness below 250gpg, pH 6.5 -8.5, No iron bacteria. Calculations of production capabilities are based on a feed water temperature of 60 Deg. F. Lower temperatures may result in slightly lower production levels.
• Unlike most companies , we are able to tailor our Skid RO systems to your needs. To ensure the longest trouble free system life and best possible treated water quality, we encourage you to fax (760-896-6999) or E-mail your water chemistry report or let us know the name of your municipal water district provider. You may also send us a water sample for evaluation.
• FREE WOOD CRATING FOR SKID TO ASSURE SAFE DELIVERY.
• FREE SHIPPING ON ALL RO SKID REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
• OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP

Not all reverse osmosis systems are created equal! RainDance Water Systems offers top of the line

state of the art reverse osmosis systems for your home, factory, business, and farm. See what sets our reverse osmosis filters apart from all others and why companies and home owners from all over the Globe have chosen RainDance Water Systems for their water treatment needs.



See and compare our unmatched Skid RO Reverse Osmosis selection below - standard features (listed above) include movable skid on casters, 300 gallon storage tank, pretreatment, UV system, and microprocessor based controller. Most important our Skid RO Series are pretested before shipping, user friendly, and components are shipped pre-plumbed on the skid and in most cases unit only requires a single point power connection



RainDance Water Systems Pre-Plumb & Wired Integrated TV-RO Skid Series

Fully Customizable For Both City & Well Water Sources



2012 RDWS-TV-RO-Skid Reverse Osmosis Systems Selection & Pricing

Model #	Description	Price
RDWS-TV-RO-SKID-2000	Complete skid mount 2000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank	Contact Us For Current Price   Need A Quote ? Click Here For Same Day Quoting
RDWS-TV-RO-SKID-4000	Complete skid mount 4000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank	Contact Us For Current Price   Need A Quote ? Click Here For Same Day Quoting
RDWS-TV-RO-SKID-6000	Complete skid mount 6000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank	Contact Us For Current Price   Need A Quote ? Click Here For Same Day Quoting
RDWS-TV-RO-SKID-8000	Complete skid mount 8000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank	Contact Us For Current Price   Need A Quote ? Click Here For Same Day Quoting
RDWS-TV-RO-SKID-10000	Complete skid mount 10000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank	Contact Us For Current Price   Need A Quote ? Click Here For Same Day Quoting
RDWS-TV-RO-SKID-12000	Complete skid mount 12000 gallon per day reverse osmosis system includes all listed standard features and 1 - 35" dia x 80" ht 300 gallon storage tank	Contact Us For Current Price   Need A Quote ? Click Here For Same Day Quoting

Larger Custom Skid Mount Reverse Osmosis Systems Available



All RDWS-TV-RO-SKID Series - Free shipping provided within the continental United States

Ordering your new commercial reverse osmosis filter has never been easier. We offer complete pricing and detailed information on our reverse osmosis filters throughout our website. If you have a specific question before ordering please call toll free 1-877-788-8387 or e-mail our staff for a fast informative response.

---

High Performance Reverse Osmosis Signature

State Of The Art Stainless Steel TSM RO Series

Stainless steel is used throughout; in frame, pressure vessels and fastening hardware to provide the

structural strength and corrosion resistance appropriate for a commercial appliance.



Perefect Choice - compact wall mount water filter solutions for coffee shops, cafe's, restaurants, spot-free rinse, labs, and small business.



TSM STAINLESS STEEL SERIES REVERSE OSMOSIS SYSTEM QUICK INSTALL GUIDE - EASY START-UP EASY MAINTENANCE 1. Mount or place the TSM reverse osmosis unit at the desired location. The unit may be wall mounted using the holes at the rear of the frame (1/4” lags or bolts) . Install rubber feet if shelf mounted. 2. Provide pre-filtered feed water. The TSM requires a 10 micron, 2.3"x20" sediment filter on the feed supply. If the feed water is chlorinated, a 2.5"x20" GAC or carbon block filter should also be employed after the sediment filter. Both types of pre-filter units are available FREE for a limited time from RainDance Water Systems if needed. Note: Additional pretreatment may be required see specs below. 3. Plumb 1/2" OD plastic tubing from the pre-filter to the TSM FEED connector. A 90- degree elbow adapter is provided with the TSM if needed for proper tubing layout. 4. Plumb 1/2" tubing from the TSM PRODUCT connector to the product water bladder storage tank. An elbow adapter is also provided for this tubing run if needed. If an atmospheric product water storage tank is to be used it will be necessary to modify the electric wiring in the TSM tank pressure switch to accommodate a tank float switch. Contact us for instructions regarding such modifications. 5. Plumb 1/2" tubing from the TSM DRAIN connector to a convenient waste drain. Local plumbing codes may require use of an air gap for such drain connection. If so, consult a local plumbing service for the proper drain connection arrangement. 6. Open the VESSEL PRESSURE CONTROL knob full counter-clockwise. Place the OFF-AUTO lever on the tank pressure switch in the OFF position. 7. Apply feed water pressure to the TSM unit. Check for leaks at the feed tubing connections. 8. Check the power specification given in the unit label (located on the base plate near the left side). Plug in or connect the correct AC electric power to the TSM unit. 9. Place the OFF-AUTO lever at AUTO. The TSM pump should start. There may be 2 or 3 re-starts as the pump clears air from the plumbing lines and filter and pressure vessels. If the unit re-starts continuously, either the feed water plumbing is inadequate for the pressure/flow requirement of the TSM unit or the pre-filter(s) are presenting too much flow restriction to the feed stream. 10. Open the Flush Valve (turn the black arrow knob to point down) for 30 seconds to help the air purge, then turn the valve knob back to the pointing out position. 11. Slowly turn the VESSEL PRESSURE CONTROL clockwise until the VESSEL IN PRESSURE gauge indicates 150 psi. 12. At this point the TSM system should be operating normally. When the product water tank pressure reaches approx. 60 psi the TSM will shut down. When the tank pressure drops to approx. 40 psi the TSM will re-start.



Wall Mount / Shelf Mount 400gpd - 1200gpd Water Production

TSM Series Commercial Reverse Osmosis Water Purifiers





TSM QUALITY COMMERCIAL R.O. - User Friendly !
TSM series of commercial Reverse Osmosis water purifiers built to suit the needs and requirements of commercial pure water users.
This includes restaurants, coffee stores, convenience stores, micro breweries, supermarket produce and food preparation operations, misting and humidification systems, car wash facilities, and many other businesses that must have consistent high quality water for their daily operations. The key factors of reliability, servicability, and consistent performance with minimum user intervention are achieved in the solid design of the TSM systems. Stainless steel is used throughout; in frame, pressure vessels and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

The TSM system design is optimized for either shelf mount or wall mount installation. The three models; 400 GPD, 800 GPD and 1200 GPD all occupy the same very compact footprint. This allows flexibility in accomodating the limited space available in most commercial utility equipment locations. Quick connect tube fittings on all system ports further simplifies installation and service. Most important, all TSM models incorporate the most reliable combination of proven reverse osmosis hydraulic design and state of the art Thin Film membrane elements to provide the long term performance expected by commercial users.

TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
• Stainless Steel Frame & Pressure Vessels
• Thin Film Composite Membranes
• High Performance 3/4 HP Motors
• Positive Displacement Rotary Vane Pump
• Integral Hydraulic Manifold Assembly
• Fast Flush Control
• Low Feed Pressure Cutout Switch
• Tank Pressure Control Switch
• Delrin Orifice or Teflon Tube Flow Control
• Feed Inlet Solenoid Valve
• SS Needle Valve Pressure Control
• Product Tank Pressure Relief Valve

• Includes: TDS Meter -Tester. The Only Way To Know If Your Reverse Osmosis RO Membrane Is Performing Correctly - Tests for TDS - Total Dissolved Solids. A Must For All RO System Owners. Compare Incoming Feed Water To Treated Water. TDS is the sum of the mineral salts in water and if too high can result in objectionable taste, cloudy ice, interference with the flavor of foods and beverages and scale left behind in pipes, machinery, glass, etc.
• All Systems Wet Tested Before Shipping

Operating Parameters: Max TDS-2500ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.

FREE SHIPPING ON ALL TSM REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.

OVERSEAS SHIPPING AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP

NO CHARGE FOR EXPORT CRATING



TSM Series Commercial Reverse Osmosis Specifications

Signature Stainless Steel TSM Series Commercial Reverse Osmosis Price Guide



A must have for consistent high quality water - Stainless steel (not aluminum) is used throughout; in frame, pressure vessels

and fastening hardware to provide the structural strength and corrosion resistance appropriate for a commercial appliance.

Part #	Gallons Per Day	# of Elements	Motor Hp	Voltage	Price
TSM-RO-400	400GPD	1	3/4	110/220	TSM-400: $2,998.00 [Add to Cart] [View Cart] *Free shipping within the continental US E-Mail Or Call Toll Free 1-877-788-8387
TSM-RO-800	800GPD	1	3/4	110/220	TSM-800: $3,198.00 [Add to Cart] [View Cart]   *Free shipping within the continental US E-Mail Or Call Toll Free 1-877-788-8387
TSM-RO-1200	1,200GPD	1	3/4	110/220	TSM-1200: $3,298.00  [Add to Cart] [View Cart]   *Free shipping within the continental US E-Mail Or Call Toll Free 1-877-788-8387
TSM-RO-1500	1,500GPD	1	3/4	110/220	TSM-1500: $3,498.00  [Add to Cart] [View Cart]   *Free shipping within the continental US   TSM-1500 Overall Dimensions: 45" W x 8" D x 14" HT   Spec Sheet available upon request Email: Sales@RainDanceWaterSystems.com

TSM Series SS Reverse Osmosis can be used with your existing atmospheric storage tank & pressure tanks Or choose from our options list below



TSM REVERSE OSMOSIS STORAGE TANKS:

Needed to store water from reverse osmosis system

Note: Our TSM reverse osmosis tanks include complete float switches for storage tanks (top tank for shut off)

Approx. 35" dia x 81" ht. 300 Gallon Storage Tank (green) (Designed to fit through standard doorways)	Model: TK-300/Float Price: $995.00ea *Free Shipping  [Add to Cart] [View Cart]
Approx. 31" dia x 72" ht. 200 Gallon Storage Tank (Designed to fit through standard doorways)	Model: TK-200/Float Price: $895.00ea *Free Shipping [Add to Cart] [View Cart]



TSM REPRESSURE SYSTEM:

Draws water out of the TSM storage tank to your application

Re-pressure pump rated @ 10gpm (110v) Designed for athmospheric storage tanks listed above.

Model: RP-10GPM Price: $695.00ea *Free Shipping  [Add to Cart] [View Cart]

TSM POST pH CORRECTION SYSTEM:

Increase your pH. Designed to keep your ro water non-corrosive and protect any copper plumbing.

4” x 20” Big Blue Calcite Cartridge mounted separately. Capacity 24,000GAL. Includes housing, bracket, wrench and one 20"cartridge	Model: CCPH-20-BB Price: $195.00ea *Free Shipping  [Add to Cart] [View Cart]
4” x 20” Big Blue Calcite Replacement Cartridge. Capacity 24,000GAL.	Model: CCPH-20-BBRPF Price: $40.00ea *Free Shipping  [Add to Cart] [View Cart]



TSM PRETREATMENT SYSTEM:

Protects TSM unit from problem City (municipal) and Well Water sources

Needed pretreatment for excessive iron, manganese, and hard water

SPECIFICATIONS - (115V) Dual Purpose Water Softener/Iron Filter: • Flow range: 12 U.S. GPM • Max pressure: 100 psi • Min pressure: 45 psi • Max hardness 60gpg • Max Ferrous and Ferric Iron: 5mg/L (ppm) • Max Manganese: 3mg/L (ppm) • 1" Inlet and outlet connections • Tank dimensions: 10" dia x 54" ht • Brine tank dimensions: 18"dia x 40"ht • Stainless steel cover for tank • Water bypass included • Maintenance: Periodically add either sodium or potassium pellets FEATURES and BENEFITS - (115V) Pretreatment System: The LCX-WST1054M Water Softener/Iron Filter is installed before the TSM RO unit to provide adequate pretreatment and prevent the IP membrane from fouling prematurely.   This is a self-backwashing system that automatically removes the trapped contaminants within the filter bed and washes them down the drain. This is accomplished with the user-friendly digital electronic control valve that is mounted on top of the softener.This valve is controlled by a meter, that calculates the amount of water being used. Once the meter reaches x amount of gallons, It then initiates the backwash cycle that cleans the bed of filtration media and resets it for the next period of filtration.   Extremely easy maintenance: This involves periodically adding either potassium or sodium pellets to the brine tank. We recommend keeping the brine tank at least half full (5 bags) with pellets. Every 2-4 months lift lid on the brine tank to see if you need to add more pellets. Maintenance and Regeneration cycles will vary on water chemistry and usage.

Part #: LCX-WST1054M Price: $1,395.00ea *Free Shipping  [Add to Cart] [View Cart]

* Free Shipping Within The Continental US



TV Series Reverse Osmosis Water Filter Systems



TV Series commercial reverse osmosis systems are designed for applications such as glassware, rinsing, beverage, solution preparation, and numerous other scientific, commercial and industrial applications. Water purified by reverse osmosis has had often greater than 95%of dissolved ions, and 99% of most contaminants removed.



TV Series commercial reverse osmosis applications include: Agriculture, Livestock, Green Houses- Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water Stores, Pharmaceutical, Electronic Industry, Process Water, Chemical Industry, Electroplating Industry, Electrical Power Generating, Polymer Solutions and more.



Vertical Mount 2,000gpd - 12,000gpd Water Production

TV Series Commercial / Industrial Reverse Osmosis Water Purifiers



TV SERIES QUALITY COMMERCIAL REVERSE OSMOSIS - User Friendly, Compare Standard Features Listed Below:
TV series are designed for commercial /industrial applications where floor space is at a premium. All major system elements are mounted within a sturdy tubular stainless steel frame, welded for long term rigidity and open for easy access to all components. The TV system is a compact, heavy duty R.O. water purifier for users requiring 2000 to 12000 gallons per day water production. TV systems are fully equipped with the instruments and controls needed for reliable long term operation.



All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include Our Following "Premium" Features:
.. Stainless steel frame, structural ABS control panel
.. On / Off Switch
.. Float Switch For Atmospheric Tank
.. 20” Prefilter
.. Quick connect brine and product connections
.. Feed and membrane vessel pressure gauges
.. Product water flowmeter
.. Brine and recirculation flow meters with integral needle valves
.. Multipurpose Water Quality Monitor: The HI 98130 Combo waterproof tester offer high accuracy pH, EC/TDS and temperature measurements in a single tester! No more switching between meters for your routine measurements. The waterproof Combo (it even floats) has a large easy-to-read, dual-level LCD and automatic shut-off. pH and EC/TDS readings are automatically compensated for the effects of temperature (ATC). This technologically advanced tester has a replaceable pH electrode cartridge with an extendable cloth junction as well as an EC/TDS graphite electrode that resists contamination by salts and other substances. This gives these meters a greatly extended life. Your tester no longer needs to be thrown away when the pH sensor is exhausted. The EC/TDS conversion factor is user selectable as is the temperature compensation coefficient (ß). Fast, efficient, accurate and portable, the Combo pH, EC/TDS and temperature tester brings you all the features you've asked for and more!
.. Low pressure cut off
.. High pressure switch
.. Patented PureFlush membrane flush feature - Clean water flushes the membrane upon start-up
.. Low energy, thin film membrane element(s)
.. "The TV series of R.O. water treatment systems are equipped with a microprocessor based controller which monitors several functional conditions and regulates operation of the high pressure pump and control valves. The controller is connected to sensors which, depending on their state, allow the cyclic production of purified water or prevent operation due to abnormal conditions. The standard configuration of the controller monitors feed water supply pressure for minimum level, product water storage tank level for system start/stop conditions and product water conductivity for maximum set point value and for digital front panel display. Additional optional parameters that the controller is capable of monitoring include main pump high pressure set point, low feed water tank level and membrane flush cycle occurrence and duration. Front panel buttons and digital display allow operator adjustment of set points and flush parameters."



SPECIFICATIONS:
.. Dimensions: 22”W x 25”D x 49”H (2-4KGPD), 29”W x 25”D x 49”H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4”FPT, product and tank - 1/2” tube
.. Operating Parameters: Max TDS-5000ppm, Total iron is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below 5 gpg.

.. FREE Shipping within the continental US

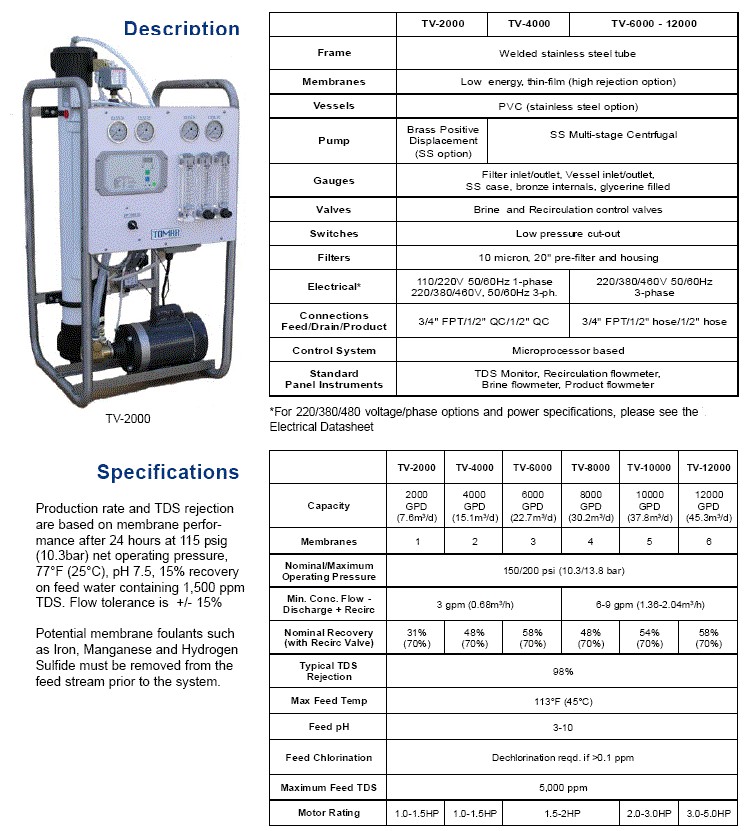

TV Series Commercial Reverse Osmosis Specifications

All 2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems Include Custom Features Listed Above

Part #	Gallons Per Day	# of Elements	Motor Hp	Price Guide
TV-RO-2000	2000	1	1.0-1.5	TV-2000: $5,898.00 [Add to Cart] [View Cart]   Order Online or Call Toll Free 1-877-788-8387 E-mail: sales@raindancewatersystems.com  Free Shipping Within the Continental US
TV-RO-4000	4000	2	1.0-1.5	TV-4000: $6,898.00 [Add to Cart] [View Cart]   Order Online or Call Toll Free 1-877-788-8387 E-mail: sales@raindancewatersystems.com  Free Shipping Within the Continental US
TV-RO-6000	6000	3	1.5-2.0	TV-6000: $7,898.00 [Add to Cart] [View Cart]   Order Online or Call Toll Free 1-877-788-8387 E-mail: sales@raindancewatersystems.com  Free Shipping Within the Continental US
TV-RO-8000	8000	4	1.5-2.0	TV-8000: $8,898.00 [Add to Cart] [View Cart]   Order Online or Call Toll Free 1-877-788-8387 E-mail: sales@raindancewatersystems.com  Free Shipping Within the Continental US
TV-RO-10,000	10000	5	2.0-3.0	TV-10,000: $9,898.00 [Add to Cart] [View Cart]   Order Online or Call Toll Free 1-877-788-8387 E-mail: sales@raindancewatersystems.com  Free Shipping Within the Continental US
TV-RO-12,000	12000	6	3.0-5.0	TV-12000: $10,898.00 [Add to Cart] [View Cart]   Order Online or Call Toll Free 1-877-788-8387 E-mail: sales@raindancewatersystems.com  Free Shipping Within the Continental US



COMMERCIAL / INDUSTRIAL

12,000 TO 24,000 GPD HORIZONTAL REVERSE OSMOSIS WATER FILTRATION

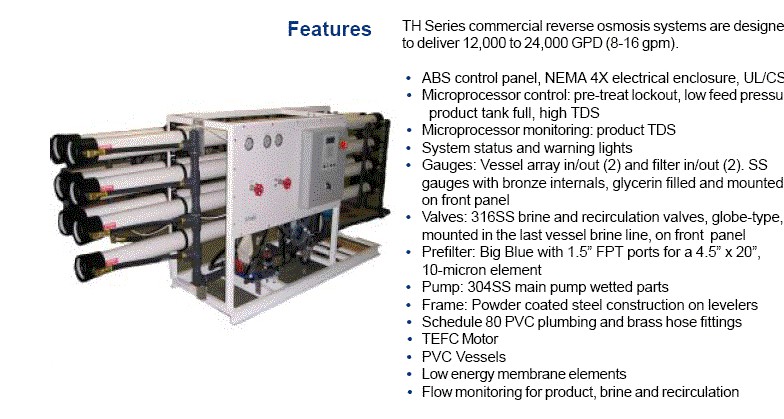

Commercial High Capacity TH Series Commercial Reverse Osmosis 12,000 to 24,000 GPD (8-16gpm) Pricing Guide

(Pricing includes all State Of The Art standard features listed below)





Commercial High Capacity TH Series Commercial Reverse Osmosis 12,000 to 24,000 GPD (8-16gpm) Pricing Guide

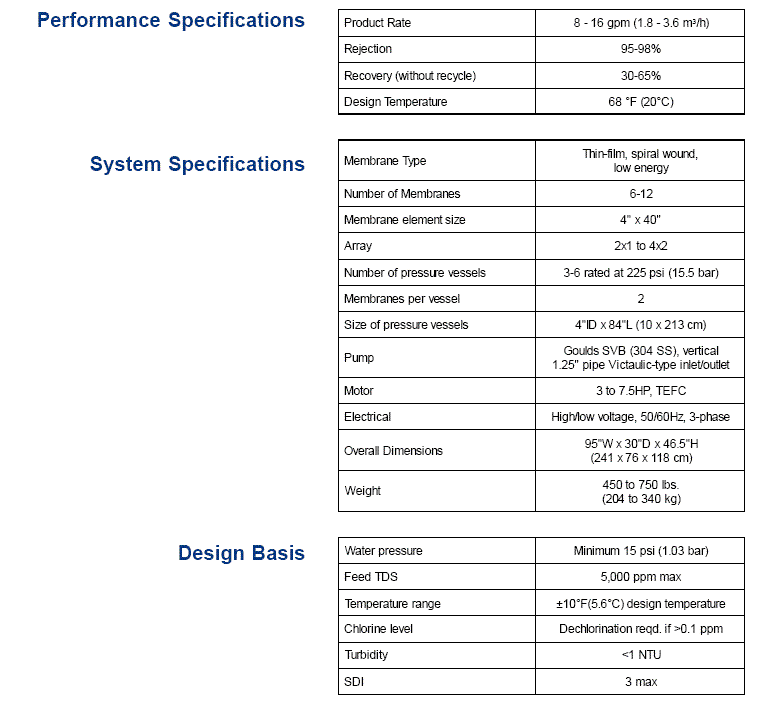

TH Series High Capacity Commercial Reverse Osmosis 12,000-24,000gpd

TH Series Request Information & Price Quote

---

ARE YOU STILL USING 25 YEAR OLD OUTDATED TECHNOLOGY

FOR YOUR REVERSE OSMOSIS MEMBRANE CLEANING?



100% COMPATIBLE WITH CURRENT REVERSE OSMOSIS MEMBRANE CHEMISTRIES



P- SeriesTM Powdered Cleaners - MSC P-SeriesTM membrane cleaners are a family of high efficiency powdered cleaners engineered to clean a broad spectrum of foulants. State-Of-The-Art chemistries enable the P-SeriesTM products to effectively clean severely fouled membrane elements. Used as directed, MSC P-SeriesTM Cleaners are 100% compatible with current membrane chemistries.

All Powdered Membrane Cleaners MSC P- 02 thru MSC P-11

Available in 45, 100, and 450 pound sizes.

Online Membrane Cleaner Quote Form

---

Liquid Membrane Cleaners

L-SeriesTM Liquid Cleaners - MSC L-SeriesTM liquid membrane cleaners employ the most advanced chemistries available to ensure the highest level of performance in the industry. Even membrane elements fouled with impossible to clean foulants like Manganese Dioxide, Cationic Polymers, Anionic Polymers and Dyes can be restored to as-new performance with MSC L-SeriesTM cleaners

All Liquid Membrane Cleaners MSC L- 02 and MSC L-11

Available in 5, 30, and 55 gallon drums.

Online Membrane Cleaner Quote Form

---



* Polymers and Dyes require two cleaning steps using MSC L-02TM as the first step and either MSC L-11TM or MSC P-11TM as the second step to achieve satisfactory results.

** It is recommended that High pH cleaning precedes low pH cleaning if Emulsified Oil is a suspected foulant.

Detailed cleaning procedures are available on request. It is recommended to consult the membrane manufacturer's technical data to determine maximum and minimum pH ranges and maximum allowable cleaning pressures, flows and temperature. Cleaning procedures provided by MSC Corp. should be modified to comply with this information.



RainDance Water Systems offers Membrane Cleaning Chemicals and NSF Certified 60 Scale Inhibitors for your reverse osmosis, nano, ultra, and microfiltration membranes.



Free RO Modeling - Fill out our online chemical information form and we will show you how your existing water treatment system is performing and how to enhance the performance with the use our membrane cleaners and scale inhibitors.

Home | Commercial Reverse Osmosis | Light Commercial Reverse Osmosis | EDI - Electrodeionization |Pharmaceutical Water Filters | Reverse Osmosis Quote | Iron and Manganese Removal | Chlorine and Chemical Removal | Multi-Media Filters |Water Treatment Chemicals | Reverse Osmosis Membrane Cleaners | Reverse Osmosis Antiscalants | Reverse Osmosis Membranes | Commercial Water Filters | Commercial Filter Housings |Water Treatment Chemical Quote | Reverse Osmosis Membrane Quote || Water Filter Quote | Filter Housing Quote |
