- These high flow commercial/industrial
UV sterilizers are designed for applications requiring a 99.9%
reduction of bacteria and viruses.
- RainDance Water Systems: UV
Pricing & Information - UV Ultravioet systems provides treatment
for flow rates of 10gpm to 40gpm delivering a 30 mJ/cm2 dose.
Home owners can now take drinking water into their own hands
& avoid the worry of Boil Water Advisories (BWA) that are
constantly in the news. This system offers a compact water treatment
solution with a small footprint for simple installation.The system
has an electronic controller which comes equipped with a simple
LED screen for visual management of the system's performance
and ultimately simple troubleshooting. The controller offers
constant current, universal input and full electrical certification. The UV reactor
is manufactured with 304SS and comes with either combination
inlet/outlet ports of 3/4”FNPT / 1”MNPT or 1”
MNPT ports. The reactor has an axial flow design. These systems
are suited for home or light-commerical type applications with
constant flow demands. They are simple to install and maintain,
allowing for a simple water solution!
-

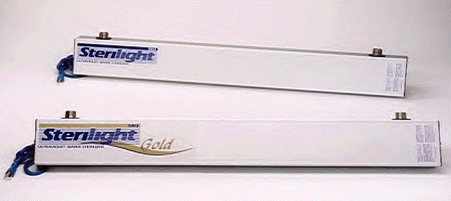

- Light Commercial Ultraviolet
Disinfection Systems 10GPM - 40GPM
|
ULTRAVIOLET
UV SYSTEMS
|
 |
|
|
|
|
Model # |
S8Q-PA |
S12Q-PA |
SC600 |
SC740 |
|
Flow Rate (gpm) |
10gpm |
15gpm |
32gpm |
40gpm |
|
Length |
35.4" |
37" |
30.7" |
39.4" |
|
Diameter |
2.6" |
3.5" |
3.5" |
3.5" |
|
Width |
2.5" |
3.5" |
Controller: 9.4" x 3.2"
x 2.5" |
Controller: 9.4" x 3.2"
x 2.5" |
|
Voltage |
100-240V./50-60Hz |
100-240V./50-60Hz |
100-240V./50-60Hz |
100-240V./50-60Hz |
|
Power Consumption (watts) |
46 |
48 |
73 |
88 |
|
Total lamp Watts |
37 |
39 |
65 |
80 |
|
Max. Operating Pressure |
125 psi |
125 psi |
125 psi |
125 psi |
|
Ambient Temperature |
36-104 F |
36-104 F |
36-104 F |
36-104 F |
|
Quartz Sleeve |
Yes |
Yes |
Yes |
Yes |
|
Inlet/Outlet Port Size |
3/4" MNPT |
- 1" MNPT / 3/4"
- FNPT "combo"
|
1" MNPT |
1" MNPT |
|
Number of UV Lamps |
1 |
1 |
1 |
1 |
|
Visual Lamp Failure Indicator
System |
Yes |
Yes |
Yes |
Yes |
|
Audible Lamp Failure Indicator
System |
Yes |
Yes |
Yes |
Yes |
|
Visual Power On |
Yes |
Yes |
Yes |
Yes |
|
Lamp Replacement Reminder |
Yes |
Yes |
Yes |
Yes |
|
Visual Lamp Life Remaining |
Yes |
Yes |
Yes |
Yes |
- Visual Total
- Running Time
|
Yes |
Yes |
Yes |
Yes |
|
Chamber Material |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
304 Stainless Steel |
- Price
|
- *UV-S8Q-PA: $625.00
- [Add
to Cart] [View
Cart]
|
- *UV-S12Q-PA: $725.00
- [Add
to Cart] [View
Cart]
|
- *UV-SC600: $995.00
- [Add
to Cart] [View
Cart]
|
- *UV-SC740: $1,195.00
- [Add
to Cart] [View
Cart]
|
|
Maintenance |
- Replace (1) UV Bulb
- Every 12 Months
|
- Replace (1) UV Bulb
- Every 12 Months
|
- Replace (1) UV Bulb
- Every 12 Months
|
- Replace (1) UV Bulb
- Every 12 Months
|
- Price
- Bulb Replacement
|
- 1 (S810RL) Bulb
x $81.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (S36RL) Bulb
x $87.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (S600RL-HO)
Bulb $95.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (S740RL-HO)
Bulb 99.00ea.
- [Add to Cart] [View
Cart]
|
- Note: UV water system parameters:
Max Iron 0.3ppm, Max Hydrogen sulfide 0.05ppm, Max suspended
10ppm, Max Manganese 0.05ppm, Max Water hardness 7 gpg.
-
-

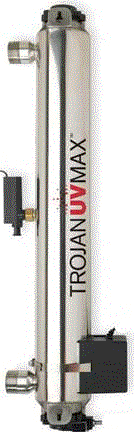

 TrojanUVMax
High Flow Commercial / Industrial UV Series
- Go With More Flow - Flow rates reach up to 70gpm.
Twice the Power - A revolutionary lamp with twice the
output of current high-output lamps, giving you compact single-lamp
systems that are half the size of their predecessors
Intuitive Interface - Because a picture is worth a thousand
words
Simple Connections - With plug-and-play colour coded connections,
it's as easy as "connect the dots."
Twice the Life Expectancy - Our revolutionary new lamps
last an unprecedented two years, reducing maintenance requirements.
Cooler Water - The CoolTouch Fan significantly reduces
water temperature and does not waste water.
Simply Shocking - The plug-and-play solenoid is equipped
with a manual override to make shocking the water line easy.
Easy Quarter-Twist Assembly - A quarter-twist to the positive
stop and you're done. No tools, no risk of overtightening.
Integrated Ground - Like a standard plug - no more grounding
wires!
Combo Parts - Flexibility to connect to either 1-1/4"
NPT or 1" FNPT.
UV Intensity Monitor With Diagnostic Test - With the push
of a button you can confirm the proper operation of the sensor.
- Commercial/Industrial Ultraviolet
UV Systems
- water purification, hotel/motel,
apartment and condominium buildings, beverage, food processing,
schools, restaurants, cafeterias, farms - dairy, cattle, chicken,
swine, horse, and more.
- TrojanUVMaxtm
- High Output Systems
W/ UV Intensity Monitors
|
-
|
-
|
|
Model # |
650658 J PLUS |
660002-R K PLUS |
|
Flow Rate (gpm) @ 30 mJ/cm2 dose |
*45gpm |
**70gpm |
|
Length |
41" |
41" |
|
Diameter |
4" |
4" |
|
Voltage |
120/240V./50-60Hz |
120/240V./50-60Hz |
|
Power Consumption (watts) |
230 |
300 |
|
Total lamp Watts |
200 |
270 |
|
Max. Operating Pressure |
100 psi |
100 psi |
|
Ambient Temperature |
32-104 F |
32-104 F |
|
Inlet/Outlet Port Size |
- 1.25" NPT / 1"
- FNPT "combo"
|
- 2"
|
|
Number of UV Lamps |
1 |
1 |
- Easy Color Coded
- Plug and Play Connections
|
Yes |
Yes |
|
CoolTouch Fan |
Yes |
Yes |
|
UV Intensity Monitor With Diagnostic
Test |
Yes |
Yes |
|
Rated Service Lamp Life |
2 Years |
2 Years |
|
Audible Alarm Mute Button |
Yes |
Yes |
|
New Lamp Button |
Yes |
Yes |
|
Ballast Operation Indicator |
Yes |
Yes |
|
Lamp Age Indicator |
Yes |
Yes |
|
Lamp Operation Indicator |
Yes |
Yes |
- Fan Operation Indicator
|
Yes |
Yes |
|
Sensor Reading Indicator |
Yes |
Yes |
|
Chamber Material |
316L. SST |
316L. SST |
- Commercial
UV Price
|
- *650658 J PLUS: $2,250.00
- [Add
to Cart] [View
Cart]
|
- **660002-R K PLUS: $3,750.00
- [Add
to Cart] [View
Cart]
|
|
Maintenance |
- Replace UV Bulb
- Every 2 Years
|
- Replace UV Bulb
- Every 2 Years
|
- Bulb Replacement
Price
|
- 1 (602856) Bulb
x $199.00ea.
- [Add to Cart] [View
Cart]
|
- 1 (602856) Bulb
x $199.00ea.
- [Add to Cart] [View
Cart]
|
- * All flow rate recommendations
are based on 85% UV transmittance (UVT) and end of lamp life.
* Inlet/outlet size restricts flow to 45 gpm and the dose will
be 39mJ/cm2. ** Inlet/outlet size restricts flow to 70 gpm and
the dose will be 39mJ/cm2.
- Two or more units can
also be plumbed in parallel where even higher flow rates are
required.
