- Price
Friendly TSM & TV Reverse Osmosis Systems
-
- Affordable water treatment
- Free limited time offers, save with special package pricing,
*free shipping
-
- We know that
you have high expectations, and as a water treatment company
we enjoy the challenge of meeting and exceeding those standards
each and every time. Allow us to demonstrate our commitment to
excellence!
-
- High Performance
Reverse Osmosis Signature
- State Of The Art
Stainless Steel TSM RO Series
- Stainless steel is used
throughout; in frame, pressure vessels and fastening hardware
to provide the
- structural strength
and corrosion resistance appropriate for a commercial appliance.
-
- Perefect Choice - compact
wall mount water filter solutions for home's, coffee shops, cafe's,
restaurants, spot-free rinse, labs, and small business.
-
-
-
- Wall Mount / Shelf
Mount 400gpd - 1500gpd Water Production
- TSM
Series Commercial Reverse Osmosis
Water Purifiers
-

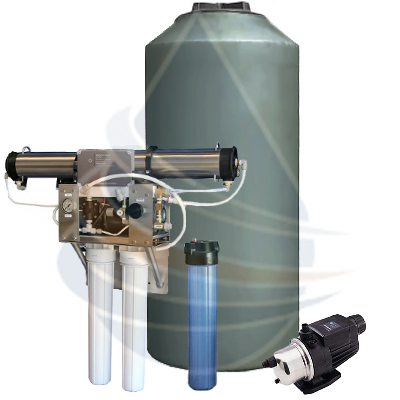

- TSM Reverse Osmosis
System Shown With Attached Pretreatment (Included Free For A
Limited Time Only )
-
- TSM QUALITY COMMERCIAL R.O.
- User Friendly !
TSM series of Reverse Osmosis water filters built to suit the
needs and requirements of commercial pure water users.
This includes restaurants, coffee stores, convenience stores,
micro breweries, supermarket produce and food preparation operations,
misting and humidification systems, car wash facilities, and
many other businesses that must have consistent high quality
water for their daily operations. The key factors of reliability,
servicability, and consistent performance with minimum user intervention
are achieved in the solid design of the TSM systems. Stainless
steel is used throughout; in frame, pressure vessels and fastening
hardware to provide the structural strength and corrosion resistance
appropriate for a commercial appliance.
The TSM system design is optimized for either shelf mount
or wall mount installation. The four models; 400 GPD,
800 GPD, 1200 GPD and 1500 GPD all occupy the same very compact
footprint. This allows flexibility in accomodating the limited
space available in most commercial utility equipment locations.
Quick connect tube fittings on all system ports further simplifies
installation and service. Most important, all TSM models incorporate
the most reliable combination of proven reverse osmosis hydraulic
design and state of the art Thin Film membrane elements to provide
the long term performance expected by commercial users.
TSM FEATURES
All TSM Reverse Osmosis systems include the
following important quality features.
• Stainless Steel Frame & Pressure Vessels
• Thin Film Composite Membranes
• High Performance 3/4 HP Motors
• Positive Displacement Rotary Vane Pump
• Integral Hydraulic Manifold Assembly
• Fast Flush Control
• Low Feed Pressure Cutout Switch
• Tank Pressure Control Switch
• Delrin Orifice or Teflon Tube Flow Control
• Feed Inlet Solenoid Valve
• SS Needle Valve Pressure Control
• Product Tank Pressure Relief Valve
- • Includes: TDS Meter -Tester.
The Only Way To Know If Your Reverse Osmosis RO Membrane Is Performing
Correctly - Tests for TDS - Total Dissolved Solids. A Must For
All RO System Owners. Compare Incoming Feed Water To Treated
Water. TDS is the sum of the mineral salts in water and if too
high can result in objectionable taste, cloudy ice, interference
with the flavor of foods and beverages and scale left behind
in pipes, machinery, glass, etc.
• All Systems Wet Tested Before Shipping
- Operating Parameters: Max TDS-2500ppm,
Total iron
is less than 0.3ppm, Manganese is less than 0.05ppm, Water hardness
below 5 gpg.
- FREE SHIPPING
ON ALL TSM REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED STATES.
- OVERSEAS SHIPPING
AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
- NO CHARGE FOR
EXPORT CRATING
-
- RainDance Water Systems
Exclusive Limited Time Only TSM Stainless Steel
RO Series FREE Pre-Treatment Special
-
- Protect Your Investment,
Save Money, Avoid Unnecessary Downtime! - LIMITED TIME FREE SPECIAL
- INCLUDED
FREE *Dual
20" sediment / carbon filter pretreatment system included
FREE with every TSM reverse osmosis system
order. Attaches directly to the base of the TSM RO system
creating a unitized wall mount assembly.The Pre-filter components
are mounted within a sturdy, heavy gauge stainless steel frame
with easy access to inlet and outlet connections.
-
 FREE Integrated Dual Sediment/Carbon Prefilter System Included.
- Provides Reverse
Osmosis Membrane Protection from Premature Fouling (loss
of rejection & production).
Consists of (1) Sediment Filter Cartridge + (1) Carbon Block
Filter Cartridge (NSF Certified Component).
Sediment Filter is rated @ 5 microns and filters Suspended Solids
(dirt, rust, sediment, etc).
Carbon Filter - High Chemical Absorptive Capacity, Significantly
Reduces Chlorine, Volatile Organic Compounds (VOC), and TOC.
Heavy gauge stainless steel frame with fasteners to attach to
the TSM RO System,
- wall mountable
as support for TSM-RO system, 2 each 20” Slim Line pre-filters,
- Feed shut-off
ball valve and EZ-Wrench for no-hassle pre-filter maintenance.
-
-
-
- TSM
Series Commercial Reverse Osmosis
Specifications
- Signature
Stainless Steel TSM Series
Commercial
Reverse Osmosis Price Guide
-
- A must have for consistent
high quality water - Stainless steel (not aluminum) is used throughout; in frame,
pressure vessels
- and fastening hardware
to provide the structural strength and corrosion resistance appropriate
for a commercial appliance.
|
Part # |
Gallons Per Day |
# of Elements |
Motor Hp |
Voltage |
Price |
|
TSM-RO-400 |
400GPD |
1 |
3/4 |
110/220 |
- TSM-400:
$2,998.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
- E-Mail Or Call Toll Free
- 1-877-788-8387
|
|
TSM-RO-800 |
800GPD |
1 |
3/4 |
110/220 |
- TSM-800:
$3,198.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
- E-Mail Or Call Toll Free
- 1-877-788-8387
|
|
TSM-RO-1200 |
1,200GPD |
1 |
3/4 |
110/220 |
- TSM-1200:
$3,298.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
- E-Mail Or Call Toll Free
- 1-877-788-8387
|
- TSM-RO-1500
|
1,500GPD |
1 |
3/4 |
110/220 |
- TSM-1500:
$3,498.00
- [Add to Cart] [View
Cart]
- *Free shipping within the continental
US
-
- TSM-1500 Overall Dimensions:
- 45" W x 8" D x 14"
HT
-
- Spec Sheet available upon request
- Email: Sales@RainDanceWaterSystems.com
|
-
- TSM REVERSE OSMOSIS STORAGE
TANKS:
- Needed to store water from reverse osmosis
system
- Note: Our TSM reverse osmosis tanks include
complete float switches for storage tanks (top tank for shut
off)
- Approx. 35"
dia x 81" ht. 300 Gallon Storage Tank (green)
- (Designed to fit through standard
doorways)
|
- Model: TK-300/Float
- Price: $995.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- Approx. 47" diameter and 78"
high 550 Gallon Storage Tank (green)
|
- Part #: LCX-TK-ST550
- Price: $1,195.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TSM REPRESSURE SYSTEM:
- Draws water out of the TSM storage tank to
your application
- Re-pressure pump rated @ 10gpm
(110v)
- Designed for athmospheric storage
tanks listed above.
|
- Model: RP-10GPM
- Price: $695.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- TSM Pre-Filtration
& Post-Filtration Option List: Take Advantage Of Great Savings
With RDWS Package Pricing
- Hard Water
Pretreatment, pH Correction, UV Disinfection, Iron, Manganese,
Hydrogen Sulfide Gas Prefiltration
- HARD WATER PRETREATMENT:
NO CHLORIDE DISCHARGE, NO BACKWASHING
- Calcium and magnesium (limescale)
- two of the hardest minerals for a reverse osmosis membrane
to remove. Our automatic antiscalant feed system will provide
hard water treatment and extend the life of your reverse osmosis
membrane and, thus, improve the efficiency of your reverse osmosis
water filter.
- Water Softener Alternative:
Hard Water Treatment
(NO-Salt Discharge) antiscalant feed system - Pretreats
and protects the membrane from hard water scale and silica. Antiscalant
injection method is preferable to brine regenerating softeners
as it is lower maintenance, economical, and is perfect for areas
of the country that have water softener chloride discharge limits.
The antiscalant formulation has been certified by the National
Sanitation Foundation (NSF) under ANSI/NSF Standard 60
for use in producing potable water.
-
- Model: TOM-CFP-V3000 (protects
ro membrane from hard water scale 5gpg to 200gpg)
- Features:Power: 110v,
Automatic antiscalant injection
pump with solution tank
|
- Model: TOM-CFP-V3000
- Price:
$995.00ea *Free Shipping
- [Add to Cart] [View
Cart]
|
-
- Post TSM-RO pH CORRECTION SYSTEM:
- Increase your pH. Designed to
keep your ro water non-corrosive and protect any copper plumbing.
- 4” x 20” Big Blue
Calcite Cartridge mounted separately. Capacity 24,000GAL. Includes
housing, bracket, wrench and one 20"cartridge
-
- 4” x 20” Big Blue
Calcite Replacement Cartridge. Capacity 24,000GAL.
|
-
- Model:
CCPH-20-BB
- Price:
$195.00ea *Free Shipping
- [Add to Cart] [View
Cart]
- Replacement
Cartridge Model:
CCPH-20-BBRPF
- Price:
$40.00ea *Free Shipping
- [Add to Cart] [View
Cart]
|
| Model:
S12Q-PA UV System
This compact line of ultraviolet disinfection systems is ideally
suited for point of use filtration, RO pre or post disinfection
or with a myriad of other applications requiring the flexibility
this design offers. The hard glass germicidal lamps provide an
economical way of treating water requiring a 4-log (99.99%) reduction
of bacteria and virus and protozoan cysts (Giardia lamblia and
Cryptosporidium). This process is accomplished without adding
any harmful chemicals to your water. |
Ask about our best Packaged
UV Pricing when purchased with our TSM or TV Reverse Osmosis
Please call 1-877-788-8387
or Email: Sales@ROConsumables.com
|
|
Well Water Pre-Filtration:
Model: Iron Max-125 This stand alone system provides
up to 15 ppm Iron ( Ferrous & Ferric) ,
7 ppm Hydrogen Sulfide, and 3ppm of Manganese
Filtration. This
pretreatment process is accomplished without adding any harmful
chemicals to your water.
|
Ask about our best
Packaged Iron Max-125 Pricing when purchased with our TSM or
TV Reverse Osmosis
Please call 1-877-788-8387
or Email: Sales@ROConsumables.com
|
|
Twin Alternating
Continuous Water Softener - Hard Water & Iron Removal Pretreatment:
Model: Twin Iron Eater-10
The perfect RO pretreatment
for both iron and hard water This system provides
up to 25 ppm of Iron ( Ferrous & Ferric) and treats up to
110 grains of hard water.
- For use on city
municipal water and well water sources.
- Protects TV-RO
System from hard water scale, rust, and iron fouling.
- EZ set-up -
We deliver this unit with the tanks and media already assembled.
Just fasten valve to the tanks. Includes innovative second tank
quick connection.
- Installing this
twin alternating water softener prior to the TV reverse osmosis
system ensures maximum performance, consistent quality and quantity
of water.
- Provides uninterrupted
soft water pretreatment as your TV reverse osmosis makes water.
- Salt and water
savings by using 100% capacity of the tank in service, before
switching to the second tank.
- Regenerates
immediately for continuous soft water pretreatment.
- The Alternating
Twin Softener can regenerate anytime, day or night, without hard
water breakthrough. Thus, eliminating the need for pre-treatment
lockout during regeneration.
- Regenerates
with soft water and keeps system clean for optimum operating
efficiency.
- Proven technology
and performance
|
Ask about our best
Packaged Twin Iron Eater Pricing when purchased with our TSM
or TV Reverse Osmosis
Please call 1-877-788-8387
or Email: Sales@ROConsumables.com
|
- * Free Shipping Within
The Continental US
-
- TV Series Reverse
Osmosis Water Filter Systems
- Each
TV-RO unit is equipped with casters for maximum portability
-
- TV Series commercial
reverse osmosis systems are designed for applications such as
glassware, rinsing, beverage, solution preparation, and numerous
other scientific, commercial and industrial applications. Water
purified by reverse osmosis has had often greater than 95%of
dissolved ions, and 99% of most contaminants removed.
-
- TV Series commercial
reverse osmosis applications include: Agriculture, Livestock,
Green Houses- Orchards, Groves, Food, Ice,and Beverage Industry,
Bottled Water Stores, Pharmaceutical, Electronic Industry, Process
Water, Chemical Industry, Electroplating Industry, Electrical
Power Generating, Polymer Solutions and more.
-
- In the age of the internet it
is very easy to obtain multiple reverse osmosis systems bids
from multiple companies. You will find we list premium components
listed as standard features with all of our reverse osmosis selections.
Please be sure to get “Apples to Apples” information
to avoid any confusion.
-
- Vertical Mount 2,000gpd
- 12,000gpd Water Production
- TV
Series Commercial / Industrial
Reverse Osmosis Water Purifiers
-
- TV SERIES QUALITY COMMERCIAL
REVERSE OSMOSIS - User Friendly, Compare Standard Features Listed
Below:
TV series are designed
for commercial /industrial applications where floor space is
at a premium. All major system elements are mounted within a
sturdy tubular stainless steel frame, welded for long term rigidity
and open for easy access to all components. The TV system is
a compact, heavy duty R.O. water purifier for users requiring
2000 to 12000 gallons per day water production. TV systems are
fully equipped with the instruments and controls needed for reliable
long term operation.
-
- All 2,000gpd Through 12,000gpd
TV Series Reverse Osmosis Systems Include Our Following "Premium"
Features:
.. Stainless steel frame, structural ABS control panel
- .. Casters for mobile portability
- Each TV-RO unit is equipped with casters for maximum portability
.. On / Off Switch
.. Float Switch For Atmospheric Tank
.. 20” Prefilter - Protects Membrane provides dechlorination, organic chemical
and sediment filtration.
.. Quick connect brine and product connections
.. Feed and membrane vessel pressure gauges
.. Product water flowmeter
.. Brine and recirculation flow meters with integral needle valves
.. Multipurpose Water Quality Monitor: The HI 98130
Combo waterproof tester offer high accuracy pH, EC/TDS and temperature
measurements in a single tester! No more switching between meters
for your routine measurements. The waterproof Combo (it even
floats) has a large easy-to-read, dual-level LCD and automatic
shut-off. pH and EC/TDS readings are automatically compensated
for the effects of temperature (ATC). This technologically advanced
tester has a replaceable pH electrode cartridge with an extendable
cloth junction as well as an EC/TDS graphite electrode that resists
contamination by salts and other substances. This gives these
meters a greatly extended life. Your tester no longer needs to
be thrown away when the pH sensor is exhausted. The EC/TDS conversion
factor is user selectable as is the temperature compensation
coefficient (ß). Fast, efficient, accurate and portable,
the Combo pH, EC/TDS and temperature tester brings you all the
features you've asked for and more!
.. Low pressure cut off
.. High pressure switch
.. Patented PureFlush membrane flush feature - Clean water
flushes the membrane upon start-up
.. Low energy, thin film membrane element(s)
.. "The TV series of R.O. water treatment systems are equipped
with a microprocessor based controller which monitors
several functional conditions and regulates operation of the
high pressure pump and control valves. The controller is connected
to sensors which, depending on their state, allow the cyclic
production of purified water or prevent operation due to abnormal
conditions. The standard configuration of the controller monitors
feed water supply pressure for minimum level, product water storage
tank level for system start/stop conditions and product water
conductivity for maximum set point value and for digital front
panel display. Additional optional parameters that the controller
is capable of monitoring include main pump high pressure set
point, low feed water tank level and membrane flush cycle occurrence
and duration. Front panel buttons and digital display allow operator
adjustment of set points and flush parameters."
-
- SPECIFICATIONS:
.. Dimensions: 22”W x 25”D x 49”H (2-4KGPD), 29”W
x 25”D x 49”H (6-12KGPD)
.. Weight: 140 -200 lbs. depending on model
.. Output*: TV-2000, 4000, 6000, 8000, 10000, & 12000 GPD
models
.. Membrane: Low energy, high rejection 4040 thin film type
.. Dissolved Solids Rejection: 98%
.. Prefilter: 10 micron polypropylene depth type
.. Power Req.: 120V, 1 Ph. to 460V 3 Ph.
.. Connections: Feed - 3/4”FPT, product and tank - 1/2”
tube
.. Operating Parameters: Max TDS-5000ppm, Total iron is less
than 0.3ppm, Manganese is less than 0.05ppm, Water hardness below
5 gpg.
.. FREE
Shipping within the continental US
-
- Why is whole house reverse
osmosis pretreatment needed? For
the preservation of the efficiency and life span of a Reverse
Osmosis (RO) installation, a sufficient pre-treatment is required.
A proper selection of pre-treatment methods for feed water will
improve affectivity and extend the life span of the system by
preventing or minimizing chlorine/organic fouling, scaling and
membrane plugging.
-
- TV
Series Commercial Reverse Osmosis
Specifications
- All
2,000gpd Through 12,000gpd TV Series Reverse Osmosis Systems
Include Custom Features Listed Above
-
- Got Hot Water? Ask about our
FREE Whole House Instant Hot Water Recirculation System Monthly
Special. The perfect companion to your NEW whole house water
filter from RainDance Water Systems. For additional information
on this limited time offer email Sales@ROConsumables.com
-
- TV LARGE VOLUME REVERSE OSMOSIS
STORAGE TANKS:
- Needed to store water from reverse
osmosis system
- Note: Our TV reverse osmosis
tanks include complete float switches for storage tanks (top
tank for shut off)
- Approx. 35"
dia x 81" ht. 300 Gallon Storage Tank (green)
- (Designed to fit through standard
doorways)
|
- Model: TK-300/Float
- Price: $995.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
- Approx. 47" diameter and 78"
high 550 Gallon Storage Tank (green)
|
-
- Part #: LCX-TK-ST550
- Price: $1,195.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TV REVERSE OSMOSIS REPRESSURE
SYSTEM:
- Draws water out of the TV storage
tank to your application
- Re-pressure pump rated @ 10gpm
(110v)
- Designed for athmospheric storage
tanks listed above.
|
- Model: RP-10GPM
- Price: $695.00ea
*Free Shipping
- [Add to Cart] [View
Cart]
|
-
- TV-Reverse
Osmosis Pre-Filtration & Post-Filtration Option List: RainDance
Water Systems Package Pricing Savings
- Hard Water
Pretreatment, pH Correction, UV Disinfection, Iron, Manganese,
Hydrogen Sulfide Gas Prefiltration
- HARD WATER PRETREATMENT:
NO CHLORIDE DISCHARGE, NO BACKWASHING
- Calcium and magnesium (limescale)
- two of the hardest minerals for a reverse osmosis membrane
to remove. Our automatic antiscalant feed system will provide
hard water treatment and extend the life of your reverse osmosis
membrane and, thus, improve the efficiency of your reverse osmosis
water filter.
- Water Softener Alternative:
Hard Water Treatment
(NO-Salt Discharge) antiscalant feed system - Pretreats
and protects the membrane from hard water scale and silica. Antiscalant
injection method is preferable to brine regenerating softeners
as it is lower maintenance, economical, and is perfect for areas
of the country that have water softener chloride discharge limits.
The antiscalant formulation has been certified by the National
Sanitation Foundation (NSF) under ANSI/NSF Standard 60
for use in producing potable water.
-
- Model: TOM-CFP-V3000
- Protects ro membrane from
hard water scale from 5gpg up to 200gpg
- Features:Power: 110v,
Automatic antiscalant injection
pump with solution tank
|
- Model: TOM-CFP-V3000
- Price:
$995.00ea *Free Shipping
- [Add to Cart] [View
Cart]
|
-
- Post TV-RO pH CORRECTION SYSTEM: Increase your pH
- Designed to keep your ro water
non-corrosive and protect any copper plumbing.
- Model: RDWS-PH-MAX How it works: The cylinder
is installed into the water supply as near to the source as possible
so that all the water from that point onwards is neutralised.
Water passes into the cylinder and permeates through the pH correction
media before passing out into the main water line again. The
media dissolves into the water until the pH is raised to approximately
7 or 7.2. Once this level the water is neutral and no more media
dissolves.
|
Ask about our best Packaged
pH Correction Pricing when purchased with our TV Reverse Osmosis
Please call 1-877-788-8387
or Email: Sales@ROConsumables.com
|
| Model:
S12Q-PA UV System
This compact line of ultraviolet disinfection systems is ideally
suited for point of use filtration, RO pre or post disinfection
or with a myriad of other applications requiring the flexibility
this design offers. The hard glass germicidal lamps provide an
economical way of treating water requiring a 4-log (99.99%) reduction
of bacteria and virus and protozoan cysts (Giardia lamblia and
Cryptosporidium). This process is accomplished without adding
any harmful chemicals to your water. |
Ask about our best Packaged
UV Pricing when purchased with our TSM or TV Reverse Osmosis
- Please call 1-877-788-8387
or Email:
- Sales@ROConsumables.com
|
|
Well Water Pre-Filtration:
Model: Iron Max-125 This stand alone system provides
up to 15 ppm Iron ( Ferrous & Ferric) ,
7 ppm Hydrogen Sulfide, and 3ppm of Manganese
Filtration. This
pretreatment process is accomplished without adding any harmful
chemicals to your water.
|
Ask about our best
Packaged Iron Max-125 Pricing when purchased with our TSM or
TV Reverse Osmosis
Please call 1-877-788-8387
or Email: Sales@ROConsumables.com
|
|
Twin Alternating
Continuous Water Softener - Hard Water & Iron Removal Pretreatment:
Model: Twin Iron Eater-10
The perfect RO pretreatment
for both iron and hard water This system provides
up to 25 ppm of Iron ( Ferrous & Ferric) and treats up to
110 grains of hard water.
- For use on city
municipal water and well water sources.
- Protects TV-RO
System from hard water scale, rust, and iron fouling.
- EZ set-up -
We deliver this unit with the tanks and media already assembled.
Just fasten valve to the tanks. Includes innovative second tank
quick connection.
- Installing this
twin alternating water softener prior to the TV reverse osmosis
system ensures maximum performance, consistent quality and quantity
of water.
- Provides uninterrupted
soft water pretreatment as your TV reverse osmosis makes water.
- Salt and water
savings by using 100% capacity of the tank in service, before
switching to the second tank.
- Regenerates
immediately for continuous soft water pretreatment.
- The Alternating
Twin Softener can regenerate anytime, day or night, without hard
water breakthrough. Thus, eliminating the need for pre-treatment
lockout during regeneration.
- Regenerates
with soft water and keeps system clean for optimum operating
efficiency.
- Proven technology
and performance
|
Ask about our best
Packaged Twin Iron Eater Pricing when purchased with our TSM
or TV Reverse Osmosis
Please call 1-877-788-8387
or Email: Sales@ROConsumables.com
|
-
Reverse Osmosis at its best!
- Multi-stage reverse osmosis
water treatment for the home.
-
- Upgrade to the RDWS-TV-RO-Skid
Series
- RainDance Water Systems TV-RO
Skid Series Commercial Reverse Osmosis
Our RDWS-TV-RO Skid Mount Series
reverse osmosis systems are designed for applications such as
glassware, rinsing, beverage, solution preparation, and numerous
other scientific, commercial and industrial applications. Water
purified by reverse osmosis has had often greater than 95%of
dissolved ions, and 99% of most contaminants removed.
RDWS-TV-RO Skid Mount Series
commercial reverse osmosis applications include: Agriculture,
Livestock, Green
Houses- Orchards, Groves, Food, Ice,and Beverage Industry, Bottled Water
Stores, Pharmaceutical, Electronic
Industry, Process
Water, Chemical
Industry, Electroplating
Industry, Electrical
Power Generating, Polymer Solutions and more.
A Must Have For
Your Skid Mount Water Treatment System! All Skid RO Series commercial reverse osmosis systems
now include a state of the art microprocessor based controller which monitors several functional conditions
and regulates operation of the high pressure pump and control
valves. The controller is connected to sensors which, depending
on their state, allow the cyclic production of purified water
or prevent operation due to abnormal conditions. The standard
configuration of the controller monitors feed water supply pressure
for minimum level, product water storage tank level for system
start/stop conditions and product water conductivity for maximum
set point value and for digital front panel display. Additional
optional parameters that the controller is capable of monitoring
include main pump high pressure set point, low feed water tank
level and membrane flush cycle occurrence and duration. Front
panel buttons and digital display allow operator adjustment of
set points and flush parameters."Perfect for serviceman
or do it yourselfer.
COMPARE
OUR RDWS-TV-RO-SKID FEATURES - WE INVITE COMPARISONS TO ANYTHING
ON THE MARKET!
RO Skid Mount Series Include
NSF 55 Class A Certified UV Treatment
Assurance: On Skid UV Ultraviolet Disinfection carries
NSF/ANSI Standard 55, Class A Certification. These units are
ideal for use in any UV application where a third-party validated
unit is specified.
RDWS-Skid-RO Series are preplumbed
and prewired in most cases with one inlet connection, one drain
connection, one water use connection, and one electrical connection
to allow for fast hassle free installation. From the delivery
of the equipment to your facility to the set up and use of water
- In hours not days!
Create the ultimate water supply
with our user friendly RDWS-TV-RO-Skid Series reverse
osmosis systems. Each high capacity Skid Series reverse
osmosis system includes: Complete pre-treatment for iron, manganese,
hydrogen sulfide gas, suspended solids, silica, chlorine, organic
chemicals and hard water. This state of the art skid mount reverse
osmosis system also includes our pH neutralizing system designed
to keep your water non-corrosive. See our standard features
listed below. All components - (excluding storage tank) are contained on our skid mount platform
with wheels - for easy positioning. Our Complete Packaged Skid
Mount Reverse Osmosis Systems are among the most water efficient
systems in the industry. With the use of concentrate water recirculation
our systems can recover 50% to 60% of the feed water as product
water. Most other systems only recover 30% to 40% of the feed
water.
- RainDance Water Systems
TV-RO Skid Series Standard Features
- (appearances will vary)
- All components (excluding
storage tank) located and
contained on our skid mount platform with wheels - for easy positioning.
- Approx. System dimensions: 34"W
x 96"L x 75" high (1000gpd -12000gpd) Designed to fit
through most standard door ways.
- Single point power connection
for 220V, 50 Hz, 1-Phase power. Custom and overseas power connections
available.
- Includes on skid (NO-Salt
Discharge) hard water antiscalant feed system - Pretreats
and protects the membrane from hard water scale and silica. The
antiscalant formulation has been certified by the National Sanitation
Foundation (NSF) under ANSI/NSF Standard 60 for use in
producing potable water.
- Includes on skid (NO Salt)
iron, manganese, hydrogen sulfide gas, and suspended solids well
water pretreatment system or substitute our (No Salt) chlorine,
voc, and thm's city water pretreatment system.
- Automatic Flush on start up
- Fast clean-flushes membrane each time the unit starts.
- Includes a microprocessor
based controller - Controller includes digital product water
conductivity indicator, Controller monitors feed water pressure,
pump output pressure, product water conductivity, product water
storage tank level and performs membrane flush on startup. Low
feed pressure, high pump pressure and high product water conductivity
result in alarm state indications. System control panel includes
prefilter in and out pressure gauges, pressure vessel in and
out pressure gauges, product water flow meter, recirc. flow meter
with control valve and concentrate flow meter with control valve."Perfect
for serviceman or do it yourselfer."
- Includes 1- 20" BB sediment
prefilter to remove dirt and sediment
- Includes 1- 20" BB carbon
prefilter
- Prefilter outlet equipped with
pressure switch for use by system controller to detect low feed
pressure and clogged prefilter condition.
- Includes a Thin Film Composite
Membrane. Rejection rate (98% +). High feed water recovery
rate (50% +).
- Includes additional testing
monitor - Portable waterproof tester offers high accuracy pH,
electrical conductivity (EC), total dissolved solids (TDS) and
temperature measurements in a single tester. Allows you to test
untreated and post treated water.
- Includes on skid Post pH
correction of product water. Designed to keep your ro water non-corrosive
and protect any copper plumbing.
- Includes 1- 35" dia. x
81" ht. 300 gallon storage tank. For ease of handling and
ability to get through doors we use a multiple array of tanks.
Product water storage tank is green, with 16" manway, 2"
bottom inlet/outlet (bushed to 1.25"). Two ea. Pump Up float
switches installed in tank.
- Includes 12gpm @ 50psi fully
automatic electric pump (constant pressure) re-pressure system
- Draws water out of the storage tank.
- Includes on skid chemical free
ultraviolet UV system. Ultraviolet Disinfection carries NSF/ANSI
Standard 55, Class A Certification. These units are ideal for use in any
UV application where a third-party validated unit is specified.
- Each skid mount reverse osmosis
is fully assembled and tested before it leaves the plant.
- For optimum Skid RO Series performance
customers must have at least 7gpm @ 30psi available. Note: Our
Skid RO Series contains complete pretreatment for chlorine and
hard water (calcium) typically associated with municipal water
sources. If Skid RO is to be used on well water we offer the
following guidelines: Operating Parameters: Max TDS-3500ppm,
Total iron
is less than 5ppm, Manganese is less than 3ppm, H2S less than
10ppm, Water hardness below 60gpg, pH 6.5 -8.5, No iron bacteria. Calculations of
production capabilities are based on a feed water temperature
of 60 Deg. F. Lower temperatures may result in slightly lower
production levels.
- Unlike most
companies , we are able to tailor our Skid RO systems to your
needs. To ensure the longest trouble free system life and best
possible treated water quality, we encourage you to fax (760-896-6999)
or E-mail your water chemistry
report or let us know the name of your municipal water district
provider. You may also send us a water sample for evaluation.
- FREE SHIPPING
ON ALL RO SKID REVERSE OSMOSIS WITHIN THE CONTINENTAL UNITED
STATES.
- OVERSEAS SHIPPING
AVAILABLE OR HAVE YOUR FREIGHT FORWARDER PICK-UP
- Not all whole house reverse
osmosis systems are created equal! RainDance Water Systems offers top of the line
- state of the art reverse osmosis
systems for your factory, business, and farm. See what sets our
reverse osmosis filters apart from all others and why companies
and home owners from all over the Globe have chosen RainDance
Water Systems for their water treatment needs.
-
- See and compare our unmatched
Skid RO Reverse Osmosis selection below - standard features (listed
above) include movable skid on casters, storage tank, pretreatment,
UV system, built-in skid mount pH neutralizer system and microprocessor
based controller. Most important our Skid RO Series are pretested
before shipping, user friendly, and components are shipped pre-plumbed
on the skid and in most cases unit only requires a single point
power connection
-
- RDWS-TV-RO-Skid
Reverse Osmosis Systems Selection & Pricing
|
Model # |
Description |
Price |
|
RDWS-TV-RO-SKID-1000 |
- Complete skid mount 1000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Price
$13,175.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-2000 |
- Complete skid mount 2000 gallon
per day reverse osmosis system
includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Price $14,975.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-4000 |
- Complete skid mount 3000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Price $15,575.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-6000 |
- Complete skid mount 6000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price $17,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-8000 |
- Complete skid mount 9000 gallon per
day reverse osmosis system includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price $23,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-10000 |
- Complete skid mount 9000 gallon
per day reverse osmosis system
includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price
$25,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
|
RDWS-TV-RO-SKID-12000 |
- Complete skid mount 12000 gallon
per day reverse osmosis system
includes standard features and
- 1 - 35" dia x 80" ht
300 gallon storage tank
-
- Click
Here For Our No-Hassle TV-RO-SKID Quote
|
- Special Price $27,804.00
- Free Shipping Available
- To Order Call Toll Free
- 1-877-788-8387
- Fax: 760-896-6999
|
RainDance Water
Systems can assist you in
all of your water treatment needs. There's no need to go anywhere
else. With over 80 years of combined experience in the water
treatment business our support team can quickly & accurately
answer all of your water filtration questions. Our resources
include engineers and water treatment professionals which utilize
virtually all known water treatment processes assuring our customers
of the most economical, dependable, and environmentally friendly
solutions. Our water treatment systems range from domestic residential
households, light commercial, large commercial / industrial operations
to membrane cleaners, scale inhibitors, and water treatment chemicals.
- We offer a full spectrum of
water treatment systems including reverse osmosis, emergency
gas powered reverse osmosis systems, skid mount water treatment
equipment, bottled water filtration, sea water desalination systems,
ultraviolet disinfection, membrane cleaning chemicals and scale
inhibitors.
-
- Custom water treatment designing
- We have the expertise to custom design any reverse osmosis
and water treatment system to fit your application needs. Wall
mounted, skid mounted, horizontal, vertical, diamond plate, stainless
steel, portable, high pressure, low pressure. In most cases systems
are pre-wired and pre-plumbed for easy installation. Complete
export capabilities and installation available.
-
- Home owners, Raindance Water
Systems offers residential whole house water treatment for well
and municipal water sources. Choose from our salt free water
conditioners, iron filters, uv systems, reverse osmosis, high
efficiency water softeners, and more.
-
- Our customers include numerous
commercial applications, residential households, business facilities
and farms throughout the United States, Spain, Canada, Japan,
U.K., Bahamas, Cayman Islands, Indonesia, Taiwan, and Malaysia.
-
- A small sample of our customer
base includes: The United States Coast Guard, Washington St.
National Park Service, San Diego State University, Palomar College,
Quinlan Texas Elementary School, Hunter Industries, Sonance Corp.,
Owens Brigam Medical, 1st Choice GMAC Realty, Century 21 Realty,
Coldwell Banker Realty, Austin Productions, Fairfield Country
Club, and Auer Precision Inc. just to name a few.
-
- Residential Water Treatment
and Whole House Water Filter:
- Well Water and City Water Softeners,
Iron Removal, Whole House Reverse
Osmosis, Iron Filters and more.
- Home | Iron Max - Well Water Filter | Iron
Eater/Softener - Well Water Filter | Twin
Iron Eater- Well Water Filter | Nitrate
Eater -Well Water Filter | Sulfate
Eater - Well Water Filter | Tannin
Eater - Well Water Filter | Bacteria and
Virus Filters - Well / City Water Filter | Hydrogen
Sulfide Gas "rotten egg odor" - Well Water Filter
| Iron and Manganese Removal -Well
Water Filter | Chlorine and Chemical Removal
- Well / City Water Filter | Under
The Sink Reverse Osmosis Systems -Well / City Water Filter
| Salt
Free Hard Water Conditioner - Well Water Filter | Salt
Free Hard Water Conditioner - City Water | Whole
House Reverse Osmosis |Water
Softener/Drinking Water Filter - City Water | RDWS-125
High Flow Water Softener | Sea
Water Reverse Osmosis Filters |
|
